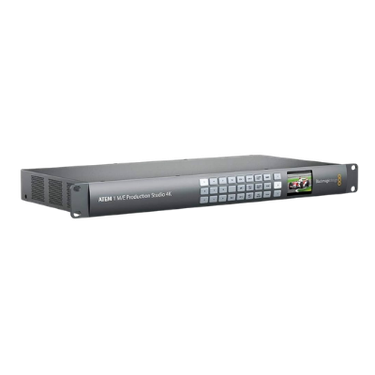

ATEM 1 M/E Production Studio 4K
by Blackmagic
ATEM 1 M/E Production Studio 4K
Name
525i59.94 NTSC, 625i50 PAL
SD Video Standards
Blackmagic
Manufacturer
SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Compliance
General Information
| Name | ATEM 1 M/E Production Studio 4K |
| Manufacturer | Blackmagic |
Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 424M |
| SDI Video Sampling | 4:2:2 10-bit native processing |
| SDI Colour Precision | 10-bit |
| SDI Colour Space | REC 601, REC 709 |
| Multiviewer | 1 x 1080i HD-SDI and 1 x HDMI |
Power
| Power Supply | 1 x Internal 100–240V AC |
| Power Usage | 100 W maximum |
Physical Specifications
| Physical Installation | 1 RU (1 Unit) |
| Weight | 2.5 kg |
| Height | 44 mm |
| Width | 482 mm |
| Depth | 127 mm |
Environmental Specifications
| Operating Temperature | 0°C to 40°C |
Connections
| Video Inputs | 10 total inputs |
| Video Outputs | 8 total active outputs |
| Aux Outputs | 3 x Dedicated 6G-SDI Aux BNC outputs |
| Ethernet | 1 x RJ45 port |
| SDI Rates | 270Mb, 1.5G, 3G, 6G |
| Genlock | 1 x BNC Input, 1 x BNC Loop Output |
