Signal Processing

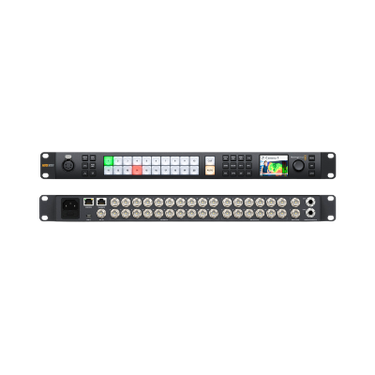

ATEM 2 M/E Constellation 4K
by Blackmagic
ATEM 2 M/E Constellation 4K
Name
None
SD Video Standards
Blackmagic
Manufacturer
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI Compliance
General Information
| Name | ATEM 2 M/E Constellation 4K |
| Manufacturer | Blackmagic |
Standards
| SD Video Standards | None |
| SDI Compliance | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 |
| SDI Video Sampling | 4:2:2 |
| SDI Colour Precision | 10-bit |
| SDI Colour Space | Rec. 601, Rec. 709, Rec. 2020 |
| Multiviewer | 2 x Independent 12G-SDI Multiview Outputs |
Power
| Power Supply | 1 x Internal 100–240V AC |
| Power Usage | 150 W maximum |
Physical Specifications
| Physical Installation | 2 RU |
| Weight | 4.8 kg |
| Height | 88 mm |
| Width | 482 mm |
| Depth | 239 mm |
Environmental Specifications
| Operating Temperature | 0°C to 40°C |
Connections
| Video Inputs | 20 x 12G-SDI BNC total |
| Video Outputs | 12 x 12G-SDI BNC total |
| Ethernet | 1 x RJ45 port |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| Genlock | 1 x BNC Input, 1 x BNC Loop Output |
