Signal Processing

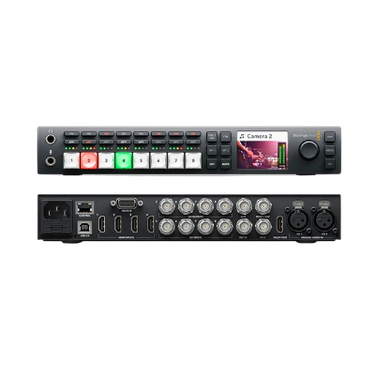

ATEM Television Studio HD
by Blackmagic
ATEM Television Studio HD
Name
525i59.94 NTSC, 625i50 PAL
SD Video Standards
Blackmagic
Manufacturer
SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Compliance
General Information
| Name | ATEM Television Studio HD |
| Manufacturer | Blackmagic |
Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 424M |
| SDI Video Sampling | 4:2:2 10-bit |
| SDI Colour Precision | 10-bit |
| SDI Colour Space | REC 601, REC 709 |
Power
| Power Supply | 1 x Internal 110–240V AC |
| Power Usage | 40 W maximum |
Physical Specifications
| Weight | 1.46 kg |
| Height | 44 mm |
| Width | 280 mm |
| Depth | 175 mm |
Environmental Specifications
| Operating Temperature | 5°C to 40°C |
Connections
| Video Inputs | 8 total active inputs |
| Video Outputs | 8 total active outputs |
| Aux Outputs | 1 x Dedicated 3G-SDI Aux BNC output |
| Ethernet | 1 x RJ45 port |
| SDI Rates | 270Mb, 1.5G, 3G |
| Genlock | 1 x BNC Input, 1 x BNC Loop Output |
