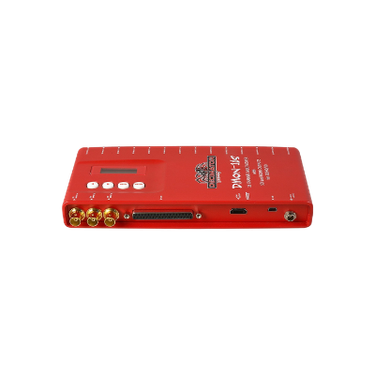

Decimator Design Multiviewers
by Decimator Design
DMON-16S: 16 x 3G/HD/SD-SDI BNC inputs - DMON-QUAD: 4 x 3G/HD/SD-SDI BNC inputs
Video Inputs
1 x HDMI Type A and 1 x 3G-SDI BNC output
Video Outputs
270Mb, 1.5G, 3G-SDI
SDI Rates
SMPTE 259M, SMPTE 292M, SMPTE 274M, SMPTE 424M, SMPTE 425M
SDI Compliance
Physical Dimensions
| Weight | 0.42kg |
| Height | 2.1cm |
| Width | 13.0cm |
| Depth | 9.7cm |
Specifications
| Video Inputs | DMON-16S: 16 x 3G/HD/SD-SDI BNC inputs - DMON-QUAD: 4 x 3G/HD/SD-SDI BNC inputs |
| Video Outputs | 1 x HDMI Type A and 1 x 3G-SDI BNC output |
| SDI Rates | 270Mb, 1.5G, 3G-SDI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 274M, SMPTE 424M, SMPTE 425M |
| SDI Video Sampling | 4:2:2 |
| SDI Colour Precision | 10-bit |
| HDCP Support | No |
| Genlock | None |
| Multiviewer Layouts | Pre-loaded with standard layouts (Quad-split, 9-way, 16-way). |
| Power Supply | External 100–240V AC power brick converting down to a wide-tolerance DC input with a metal thread-locking barrel jack to prevent accidental disconnects |
| Power Usage | DMON-16S: +5V to +32V DC input range, low power consumption - DMON-QUAD: +5V to +32V DC input range, highly efficient, fanless silent cooling design |
