LED Screen
Outdoor

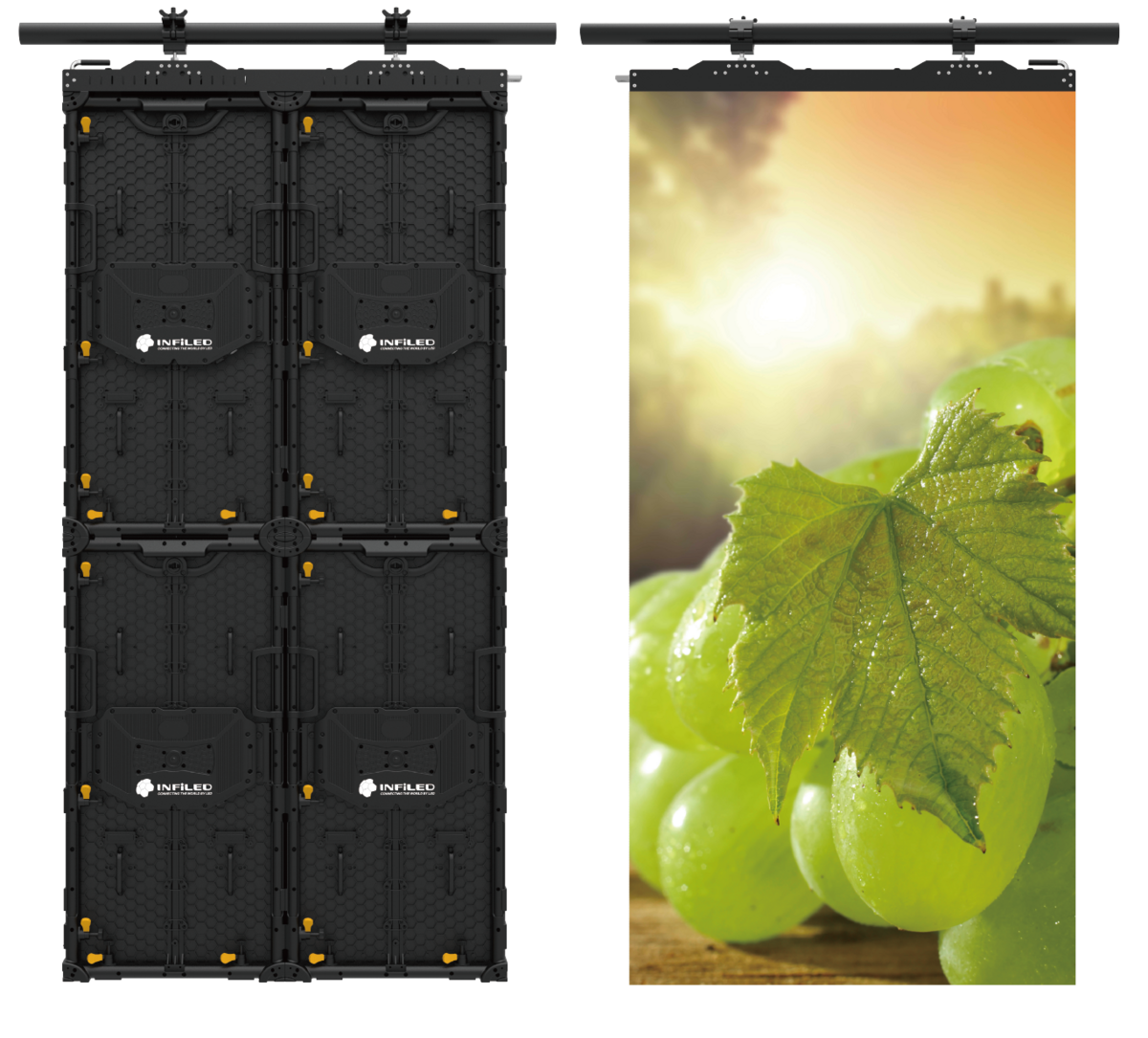

ER5
by InfiLED
Dependable Outdoor Tall screen
5.95
Pixel Pitch
14
Weight per Tile
84
Horizontal Resolution
168
Vertical Resolution
Physical Dimensions
| Weight | 14.00kg |
| Height | 100.0cm |
| Width | 50.0cm |
| Depth | 6.8cm |
Technical Specifications
| Pixel Pitch | 5.95 mm |
| Weight per Tile | 14 kg |
| Horizontal Resolution | 84 px |
| Vertical Resolution | 168 px |
| Transparency | 0% % |
| Brightness | 5000 NITS |
| IP Rating | IP54 |
| Power Consumption 100% (per tile) | 270 |
| Earth Leakage per m² | 2.2 |
| Refresh Rate | 3840Hz |
| Grey Scale Bit Depth | 14bit |
| Maximum Hanging | 14 tiles |
| Processing Platform | Brompton |
| Data Connectors | Ethercon |
| Power Connectors | True1 |
| Indoor/Outdoor | Outdoor |
| Viewing Angle (H) | 160 ° |
| Viewing Angle (V) | 130 ° |
| Curving (Concave) | 10 |
| Curving (Convex) | 10 |
| Touring Frames | Yes (request specifications) |
Key Features
| Tiles Per Dolly | 15 |
| Maximum Flown Height | 14m |
| Maximum Stacked Height | - |
