Media Server

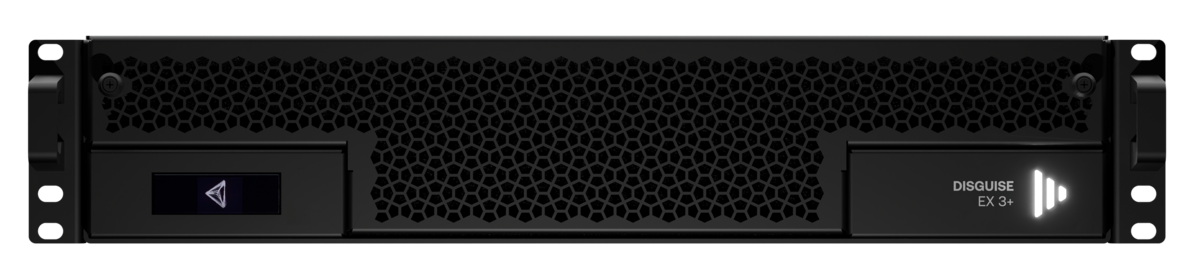

EX 3+
by Disguise
Mid-scale media server for installations and location-based experiences
AMD EPYC 2.45Ghz
CPU
NVIDIA RTX 4000 Ada
GPU
96GB
RAM
3.84TB Removable NVMe SSD
Storage
Technical Specifications
| CPU | AMD EPYC 2.45Ghz |
| GPU | NVIDIA RTX 4000 Ada |
| RAM | 96GB |
| Storage | 3.84TB Removable NVMe SSD |
| Operating System | Windows 11 IoT Enterprise GAC |
| PCIe Generation | PCIe Gen 5 |
I/O & Connectivity
| Video Outputs | 3x DisplayPort 1.4 |
| Max Output Resolution | 4K DCI (4096 x 2160) |
| Video Inputs | 1x 12G SDI or 4x 3G SDI + 1x HDMI 2.0 capture |
| Max Input Resolution | 4K DCI / 8x Full-HD |
| High-Speed Network | 2x 100GbE QSFP28 |
| General Network | 2x 10GbE |
| Genlock | BNC Genlock |
| GUI Output | 1x DisplayPort 1.4 |
Key Features
| Form Factor | 2U 19in rack mount |
| Dimensions (W x H x D) | 620mm x 310mm x 850mm |
| Weight | 21.5 kg |
| Software Platform | disguise |
| Notch Support | Yes |
| OmniCal Compatible | Yes |
| Redundancy/Failover | Yes — scalable failover with EX/VX/GX fleet |
