Signal Processing

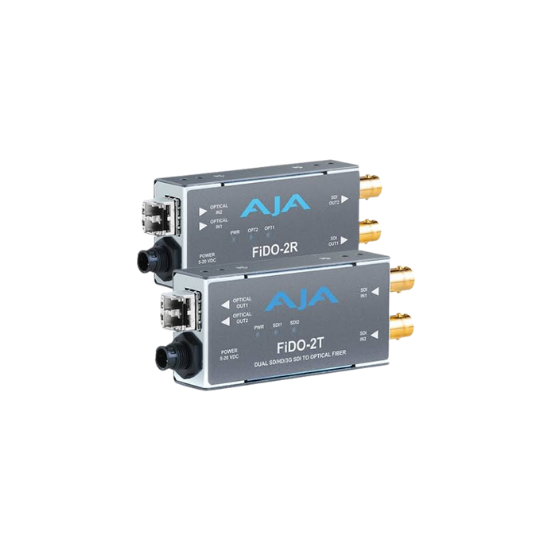

FiDO-2T / FiDO-2R
by AJA Video Systems
2 x Independent 3G-SDI BNC electrical inputs
Video Inputs 2T
2 x Independent Single-Mode LC Fiber inputs
Video Inputs 2R
Format-agnostic physical transport layer processing signals from 150 Mbps up to 3.0 Gbps per channel line completely independently.
SDI Rates
Fully compliant with industry transport benchmarks SMPTE-259M (SD), SMPTE-292M (HD), SMPTE-424M (3G Level A and Level B profiles), and SMPTE-297 (Optical transport specifications).
SDI Compliance
Video Inputs & Outputs
| Video Inputs 2T | 2 x Independent 3G-SDI BNC electrical inputs |
| Video Inputs 2R | 2 x Independent Single-Mode LC Fiber inputs |
| Video Outputs 2T | 2 x Independent Single-Mode LC Fiber optical outputs |
| Video Outputs 2R | 2 x Independent 3G-SDI BNC electrical outputs |
Resolutions & SDI Rates
| SDI Rates | Format-agnostic physical transport layer processing signals from 150 Mbps up to 3.0 Gbps per channel line completely independently. |
| SDI Compliance | Fully compliant with industry transport benchmarks SMPTE-259M (SD), SMPTE-292M (HD), SMPTE-424M (3G Level A and Level B profiles), and SMPTE-297 (Optical transport specifications). |
| SDI Video Sampling | Natively processes and preserves pristine professional 4:2:2 component sampling layers. |
| SDI Colour Precision | Complete technical pass-through validation for uncompressed high-fidelity 10-bit YUV processing paths. |
