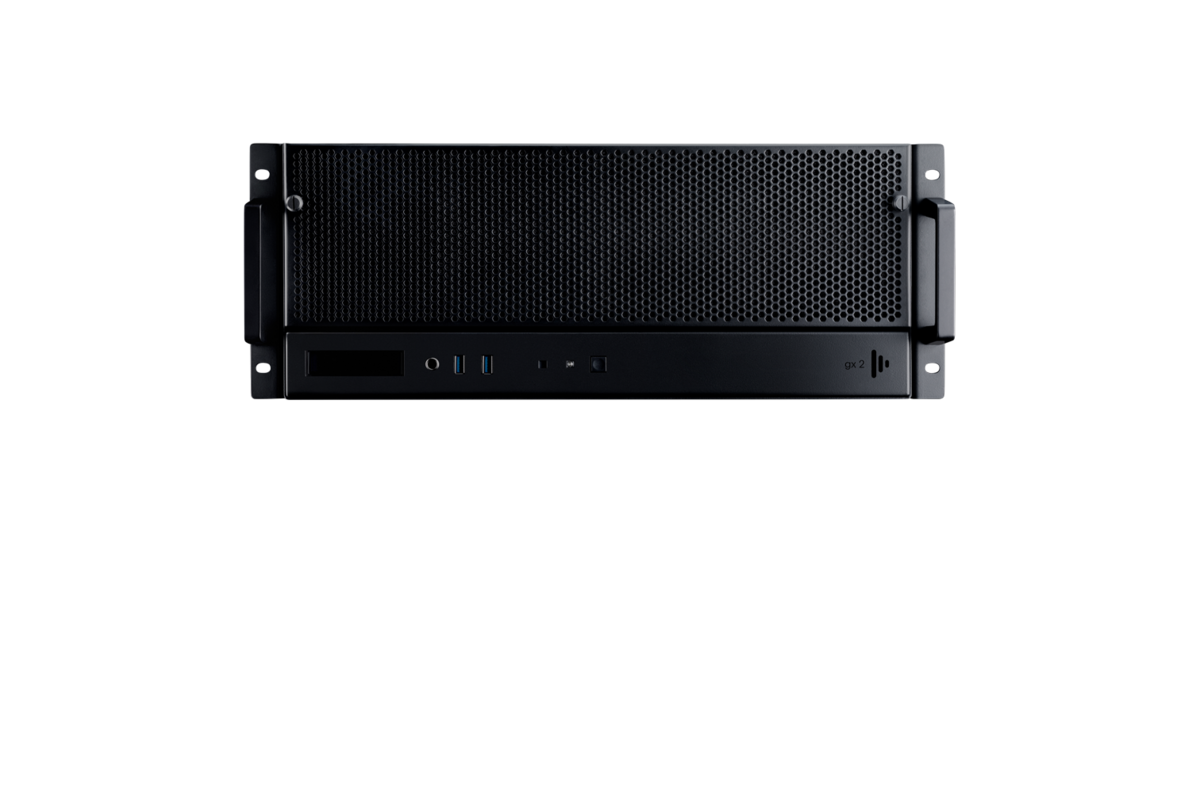

Media Server
GX 2
by Disguise
The GX2 couples the power of the VX range with a powerful GPU to allow for users to create and play back dynamic content that responds to its environment in real-time with Notch.
Intel Xeon Quad-Core 3.7Ghz
CPU
NVIDIA Quadro P6000
GPU
16GB
RAM
2TB SSD
Storage
Technical Specifications
| CPU | Intel Xeon Quad-Core 3.7Ghz |
| GPU | NVIDIA Quadro P6000 |
| RAM | 16GB |
| Storage | 2TB SSD |
| Operating System | Windows 10 IoT Enterprise LTSB |
| Notchmark Score | 22,500 |
I/O & Connectivity
| Video Outputs | 1x DisplayPort 1.2 (GUI) 2x VFC Output Slots |
| Video Inputs | 1x DisplayPort 1.2 (GUI), 2x VFX Output Slots |
| General Network | 1x Gigabit LAN |
| Genlock | BNC Genlock |
| GUI Output | 1x DisplayPort 1.2 |
Key Features
| Form Factor | 4U 19” rack-mountable unit |
| Dimensions (W x H x D) | 445mm x 178mm x 593mm |
| Weight | 16.8 kg |
