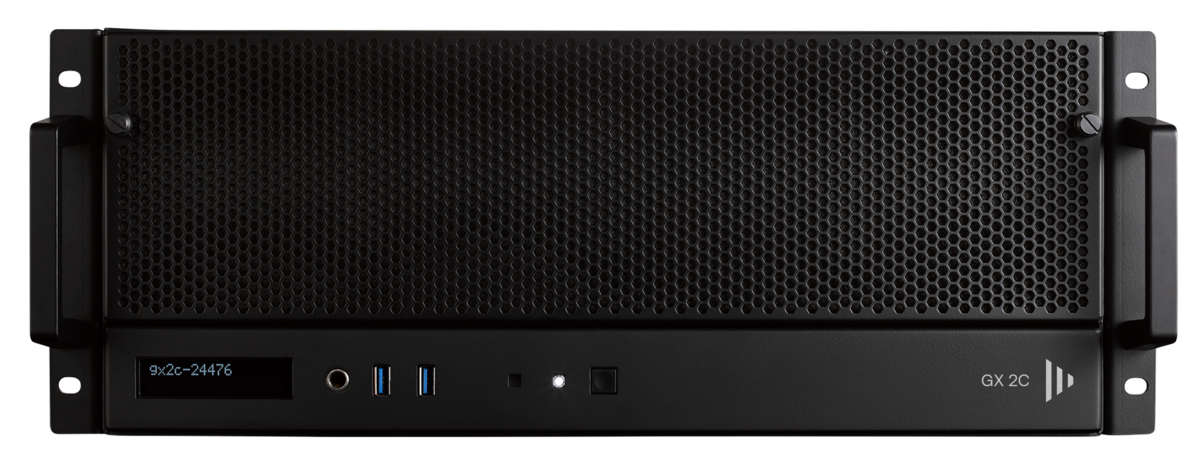

Media Server
GX 2C
by Disguise
The GX2c is an award-winning machine that features eight 3G-SDI inputs, two 10GbE network ports, as well as 10-bit and HDR playback support alongside generative Notch graphics
Intel Xeon Quad-Core 3.7Ghz
CPU
NVIDIA Quadro RTX 6000
GPU
64GB
RAM
4TB
Storage
Technical Specifications
| CPU | Intel Xeon Quad-Core 3.7Ghz |
| GPU | NVIDIA Quadro RTX 6000 |
| RAM | 64GB |
| Storage | 4TB |
| Operating System | Windows Enterprise SAC |
| Notchmark Score | 38,433 |
I/O & Connectivity
| Video Outputs | 1x DisplayPort 1.2 (GUI) 2x VFC Output Slots |
| Video Inputs | 8x 3G-SDI / 2x 2160p (Quad Split) |
| General Network | 1x Gigabit LAN |
| Genlock | 1x physical BNC Genlock input |
| GUI Output | 1x dedicated DisplayPort 1.2 port |
Key Features
| Form Factor | 4U 19” rack-mountable unit. |
| Dimensions (W x H x D) | 445mm x 178mm x 593mm |
| Weight | 16.8 kg |
| Software Platform | disguise |
| Notch Support | yes |
