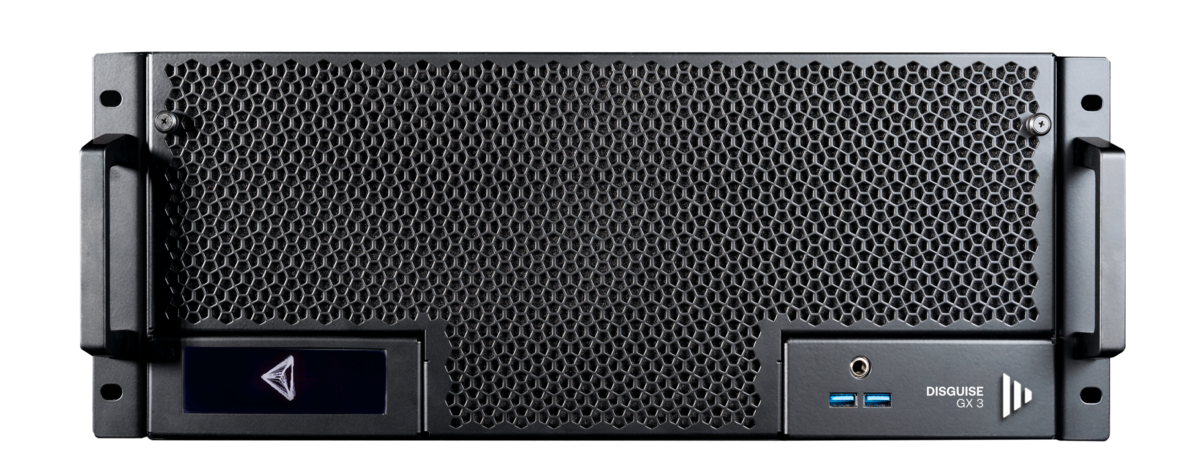

Media Server
GX 3
by Disguise
Flagship media server for large-scale live events and broadcast
Intel Xeon 3.1 GHz
CPU
NVIDIA RTX A6000
GPU
96GB (6x 16GB)
RAM
1x 3.84TB Removable NVMe SSD
Storage
Technical Specifications
| CPU | Intel Xeon 3.1 GHz |
| GPU | NVIDIA RTX A6000 |
| RAM | 96GB (6x 16GB) |
| Storage | 1x 3.84TB Removable NVMe SSD |
| Read Speed | 6.2 GB/s |
| Operating System | Windows 10 IoT Enterprise GAC |
| PCIe Generation | PCIe 4.0 |
| Notchmark Score | 53000+ |
I/O & Connectivity
| Video Outputs | 3x 4K VFC card outputs |
| Max Output Resolution | 4K DCI (4096 x 2160) |
| Video Inputs | 3x 4K DCI @ 12G SDI or 12x Full-HD @ 3G SDI |
| Max Input Resolution | 4K DCI 60p / 12x 1080p60 |
| High-Speed Network | 2x 100GbE QSFP28 |
| General Network | 4x 10GbE |
| GUI Output | HDMI 2.0 |
Key Features
| Form Factor | 4U 19in rack mount |
| Max Noise | 56 dB |
| Software Platform | disguise |
| Notch Support | Yes |
| OmniCal Compatible | Yes |
| Redundancy/Failover | Yes — networked with other GX/VX/EX machines |
