Signal Processing

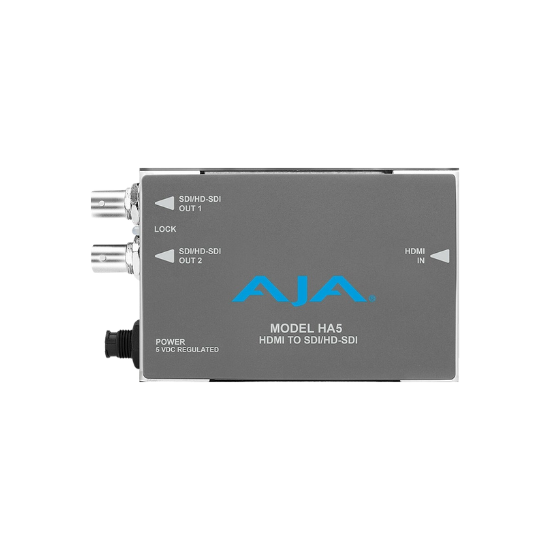

HA5
by AJA Video Systems
Fully standard-compliant with SMPTE-259M (SD-SDI) and SMPTE-292M/296M (HD-SDI)
SDI Compliance
Internal hardware processing utilizes a standard 4:2:2 component video sampling profile
SDI Video Sampling
Fixed baseline 10-bit YUV processing path
SDI Colour Precision
Strict +5V DC regulated input via a threaded metal screw-locking power terminal socket
Power Supply
Standards
| SDI Compliance | Fully standard-compliant with SMPTE-259M (SD-SDI) and SMPTE-292M/296M (HD-SDI) |
| SDI Video Sampling | Internal hardware processing utilizes a standard 4:2:2 component video sampling profile |
| SDI Colour Precision | Fixed baseline 10-bit YUV processing path |
| HDCP | No |
| Multiviewer | Not Applicable |
Power
| Power Supply | Strict +5V DC regulated input via a threaded metal screw-locking power terminal socket |
| Power Usage | Draws a flat profile maximum of 4.0 Watts |
Physical Specifications
| Weight | 0.21 kg |
| Height | 25 mm |
| Width | 117 mm |
| Depth | 61 mm |
Connections
| Video Inputs | 1 x HDMI Type A connector |
| Video Outputs | 2 x Looping HD/SD-SDI outputs |
| SDI Rates | Limited to 1.485 Gbps (HD-SDI) and 270 Mbps (SD-SDI) |
| Genlock | No external master sync frame port. It clocks output timing values directly from the input HDMI source wire. |
