Cameras

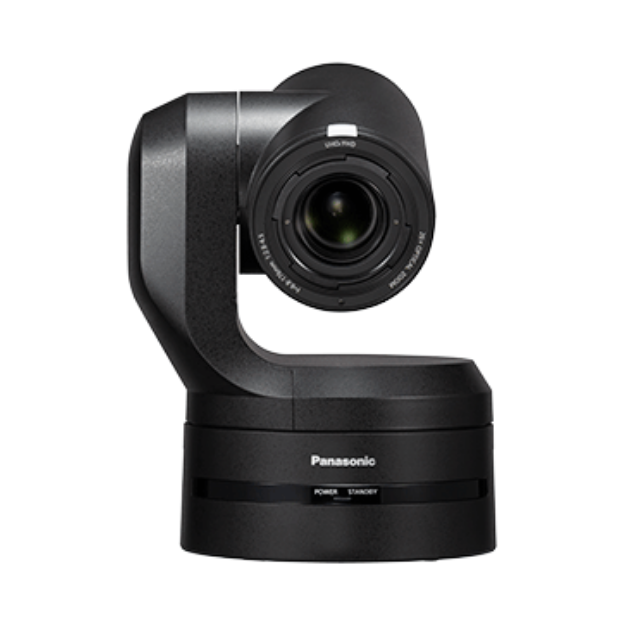

HE145K PTZ
by Panasonic
HD PTZ camera that enables high-quality video production even in dark environments
HE145K PTZ
Name
Panasonic
Manufacturer
4.1
Weight
267
Height
General Information
| Name | HE145K PTZ |
| Manufacturer | Panasonic |
Physical Specifications
| Weight | 4.1 kg |
| Height | 267 mm |
| Width | 213 mm |
| Depth | 219 mm |
Power
| Power Requirements | 12 V DC (10.8 V to 13.2 V) |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
Technical Specifications
| Imaging Sensors | 1-type Full-HD MOSx1 |
| Effective Pixels | 20.18 million pixels |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)] |
Video
| Output Format | 1080/59.94p, 1080/50p, 1080/29.97p2, 1080/29.97PsF, 1080/25p2, 1080/25PsF, 1080/23.98p3 , 1080/24p2, 1080/23.98p2, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
I/O & Connectivity
| Input Connector | LAN, RS-422 |
| Video Output | HDMI, 3G-SDI OUT |
