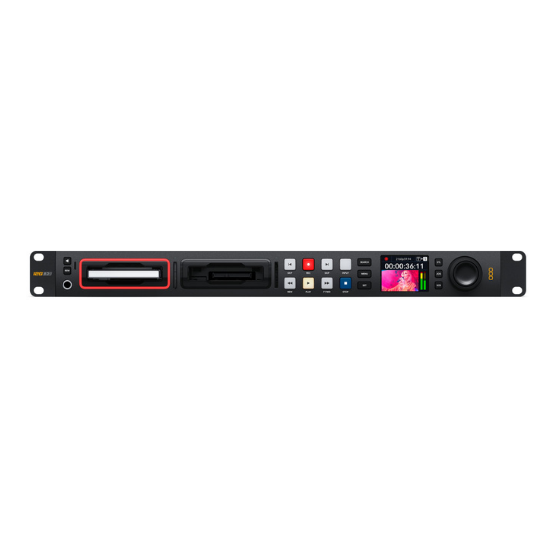

HyperDeck Studio 4K Pro
by Blackmagic
For extreme power, the HyperDeck Studio 4K Pro has all the features of the HD models, combined with incredible processing for working in Ultra HD.
HyperDeck Studio 4K Pro
Name
525i59.94 NTSC, 625i50 PAL
SD Video Standards
Blackmagic
Manufacturer
For extreme power, the HyperDeck Studio 4K Pro has all the features of the HD models, combined with incredible processing for working in Ultra HD.
Description
General Information
| Name | HyperDeck Studio 4K Pro |
| Manufacturer | Blackmagic |
| Description | For extreme power, the HyperDeck Studio 4K Pro has all the features of the HD models, combined with incredible processing for working in Ultra HD. |
Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. |
| SDI Video Sampling | 4:2:2 YUV |
| SDI Colour Precision | 10‑bit |
| SDI Colour Space | REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out. |
Power
| Power Supply | 2 x Internal 100 - 240V AC 50/60Hz. 1 x 4 pin XLR 12V DC In for external power supply or battery use. |
| Power Usage | 100 W max. |
Physical Specifications
| Physical Installation | 1U |
| Weight | 2.53 kg |
| Height | 44.2 mm |
| Width | 482 mm |
| Depth | 236.4 mm |
Environmental Specifications
| Operating Temperature | 0° to 40° C (32°to 104° F) |
| Environmental Temperature | -20° to 60° C (-4° to 140° F) |
| Environmental Humidity | 0% to 90% non‑condensing |
Connections
| Video Inputs | 1 |
| Video Outputs | 2 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
