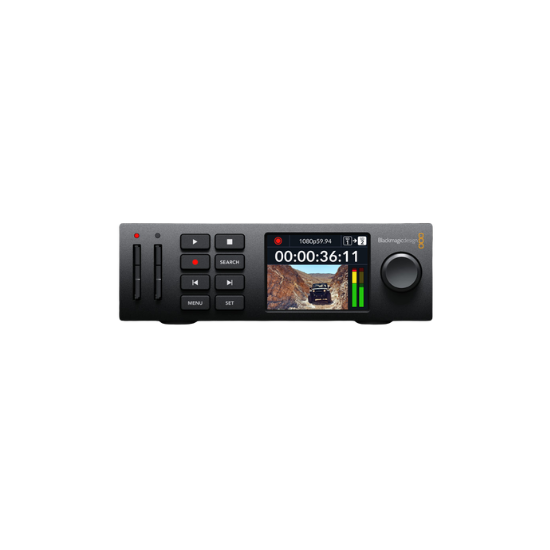

HyperDeck Studio HD Mini
by Blackmagic
The most compact model of HyperDeck Studio is based on the Teranex Mini form factor.
HyperDeck Studio HD Mini
Name
525i59.94 NTSC, 625i50 PAL
SD Video Standards
Blackmagic
Manufacturer
The most compact model of HyperDeck Studio is based on the Teranex Mini form factor.
Description
General Information
| Name | HyperDeck Studio HD Mini |
| Manufacturer | Blackmagic |
| Description | The most compact model of HyperDeck Studio is based on the Teranex Mini form factor. |
Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2084 and SMPTE 2108‑1. |
| SDI Video Sampling | 4:2:2 YUV |
| SDI Colour Precision | 10‑bit |
| SDI Colour Space | REC 601, REC 709, REC 2020. |
Power
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz. 1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use. |
| Power Usage | 50 W max. |
Physical Specifications
| Physical Installation | One third rack unit width, 1 rack unit height. |
| Weight | 0.82 kg |
| Height | 44.2 mm |
| Width | 140 mm |
| Depth | 177 mm |
Environmental Specifications
| Operating Temperature | 0° to 40° C (32°to 104° F) |
| Environmental Temperature | -20° to 60° C (-4° to 140° F) |
| Environmental Humidity | 0% to 90% non‑condensing |
Connections
| Video Inputs | 1 |
| Video Outputs | 1 |
| Ethernet | 1Gb/s |
| SDI Rates | 270Mb, 1.5G, 3G. |
