Signal Processing

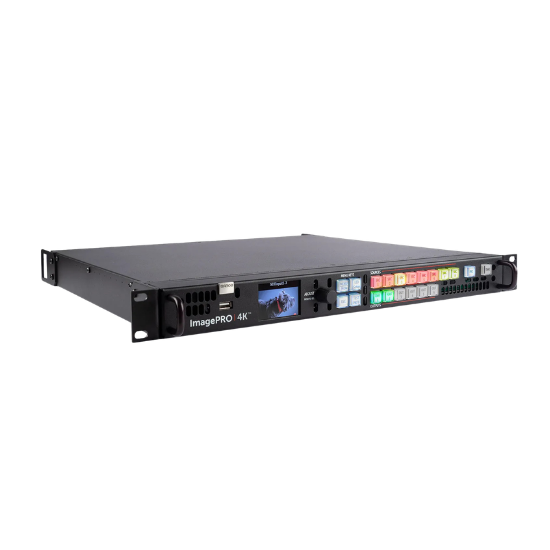

ImagePro 4K
by Barco
ImagePro 4K
Name
Barco
Manufacturer
Scale, convert and switch images for the way shows are created in a 4K world.
Description
Input power: 100-240 VAC 50/60Hz 125w
Power Supply
General Information
| Name | ImagePro 4K |
| Manufacturer | Barco |
| Description | Scale, convert and switch images for the way shows are created in a 4K world. |
Standards
| HDCP | HDCP compliance determined by installed cards |
| Multiviewer | Video preview on front panel |
Power
| Power Supply | Input power: 100-240 VAC 50/60Hz 125w |
Physical Specifications
| Weight | 6.8 kg |
| Height | 43.7 mm |
| Width | 484.1 mm |
| Depth | 404.1 mm |
Environmental Specifications
| Environmental Temperature | 0-40 C (32-104 F) |
| Environmental Humidity | 0-95% non-condensing (non-operating) 0-85% non-condensing (operational) |
Connections
| Video Inputs | 1x HDMI™ 2.0 4K60p 4:4:4 8bit, 4:2:2 10 bit, d 1x DisplayPort 1.2 4K60p 4:4:4 10bit, d and 2x 12G SDI 4K60p 4:2:2 10bit or 4x 3G SDI 1200p@60p 4:2:2 10bit. |
| Video Outputs | 1x HDMI™ 2.0 4K60p 4:4:4 8bit, 4:2:2 10 bit, d 1x DisplayPort 1.2 4K60p 4:4:4 10bit, d and 2x 12G SDI 4K60p 4:2:2 10bit or 4x 3G SDI 1200p@60p 4:2:2 10 bit. |
| Aux Outputs | Up to 6x HD single scaler outputs or 2x 4K60p single scaler outputs supporting independent scaling, sizing, and color correction. |
| Genlock | Analog reference input on BNC connector. Blackburst and Bi-level at SD, and Tri-level at HD Reference output is provided by an internal sync generator capable of Bi-level and Tri-level sync signals |
