Signal Processing

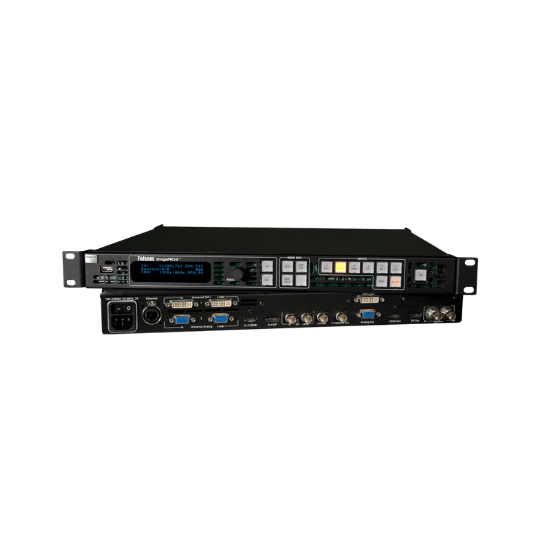

ImagePro II
by Barco
ImagePRO-II is an advanced high-performance all-in-one video scaler, scan converter, switcher, and transcoder converting most input signal formats to most output formats.
ImagePro II
Name
Barco
Manufacturer
ImagePRO-II is an advanced high-performance all-in-one video scaler, scan converter, switcher, and transcoder converting most input signal formats to most output formats.
Description
7.14
Weight
General Information
| Name | ImagePro II |
| Manufacturer | Barco |
| Description | ImagePRO-II is an advanced high-performance all-in-one video scaler, scan converter, switcher, and transcoder converting most input signal formats to most output formats. |
Standards
| HDCP | HDCP compliant |
| Multiviewer | N/A |
Physical Specifications
| Weight | 7.14 kg |
| Height | 44 mm |
| Width | 484 mm |
| Depth | 470 mm |
Environmental Specifications
| Environmental Temperature | 0-40° C (32-104 F) |
| Environmental Humidity | 0-95% non-condensing (non-operating) 0-85% non-condensing (operational) |
Connections
| Video Inputs | 5 fixed inputs (6 with dual output option) - 1x Dual Link DVI-I up to 4K@30p DVI d 1x HD-15 (VGA) - 1x HDMI 1.4 (165 MHz) Excl ImagePRO II Jr - 1x DisplayPort 1.1 Up to 4K@30p (300 MHz max) Excl ImagePRO II Jr - 1x 3G SDI (2x 3G SDI with dual output option) |
| Video Outputs | 6 fixed outputs (7 with dual output option) - 1x Composite NTSC/PAL via BNC - 1x Dual Link DVI-I Up to 4K@30p DVI - 1x HD-15 (VGA) - 1x HDMI 1.4 (165 MHz) Excl ImagePRO II Jr - 1x DisplayPort 1.1 Up to 4K@30p (300MHz max) Excl ImagePRO II Jr - 1x 3G SDI (2x 3G SDI with dual output option) |
| Aux Outputs | N/A |
| Genlock | Analog reference input/loop on BNC connectors; bi-level and blackburst at SD and tri-level at HD, or locked to any input signal. S3D Sync: input Din connector, output Din connector |
