Comms And Network

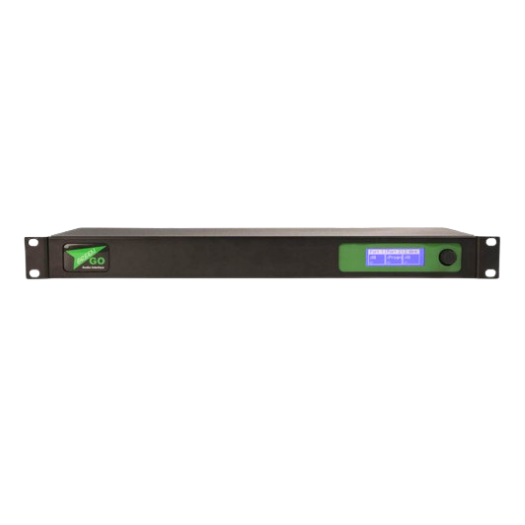

InterfaceX
by Green-GO
10/100 Mbps data rates per port
Network Speed
2-port internal managed Ethernet switch
Chassis Switching
2 x Neutrik EtherCON RJ45
Physical Connectors
Sub-12 millisecond digital audio transmission delay across nodes
Network Latency
Physical Dimensions
| Weight | 2.30kg |
| Height | 4.4cm |
| Width | 48.3cm |
| Depth | 15.0cm |
Network & Digital Architecture
| Network Speed | 10/100 Mbps data rates per port |
| Chassis Switching | 2-port internal managed Ethernet switch |
| Physical Connectors | 2 x Neutrik EtherCON RJ45 |
| Network Latency | Sub-12 millisecond digital audio transmission delay across nodes |
4-Wire Audio Specs
| Port Capacity | 1 single-channel analogue partyline intercom loop |
| Line Inputs | 2 x Neutrik XLR 3-pin female connectors (balanced, line-level) |
| Line Outputs | 2 x Neutrik XLR 3-pin male connectors (balanced, line-level) |
| Input Impedance | Greater than 10 kΩ balanced |
| Output Impedance | Less than 100 Ω balanced |
| Nominal Level | 0 dBu standard operational level |
2-Wire Audio Specs
| Port Capacity | 1 single-channel analogue partyline intercom loop |
| Physical Connector | 1 x Neutrik XLR 3-pin female connector |
| Platform Compatibility | Selectable software profiles for Clear-Com, RTS-TW, and Tecpro systems. |
| Line Termination | 1 x hardware toggle switch for 2-Wire network termination line load. |
| Echo Management | Software-driven digital Auto-Null routine to eliminate line-reflection reflections. |
Control Interfacing & Signaling
| GPIO Connectors | 2 x D-Sub 9-pin female ports |
| Inputs | 2 x opto-isolated logic inputs per D-Sub port for remote triggering |
| Outputs | 2 x isolated relay contact closure outputs per D-Sub port |
| Visual Display | 1 x front-panel high-resolution full-colour TFT display for system status and monitoring |
| Hardware Interface | 1 x click-rotary encoder knob and 1 x tactile menu back button |
Power & Mechanical Specifications
| PoE Supply | Power over Ethernet standard IEEE 802.3af supported on LAN Port 1 |
| DC Input | 1 x auxiliary 12V DC barrel jack socket |
| Power Draw | Maximum 4 Watts total power consumption |
| Vertical Height | 1U |
