Comms And Network

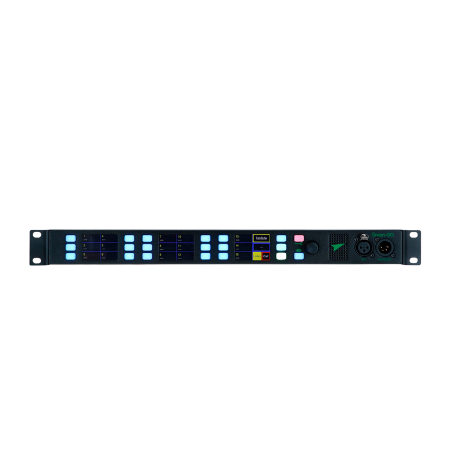

MCX Rack Main Station
by Green-Go
3 high-contrast, full-colour TFT touchscreens displaying channel labels, cues, volume levels, and status
Display
32 multi-colour, backlit push-buttons for direct channel or group control, plus dedicated function buttons
Buttons
1 multi-function rotary encoder for system parameter navigation and overall volume adjustment
Encoders
32 communication channels natively across two switchable operational layers
Channels
Controls And Display
| Display | 3 high-contrast, full-colour TFT touchscreens displaying channel labels, cues, volume levels, and status |
| Buttons | 32 multi-colour, backlit push-buttons for direct channel or group control, plus dedicated function buttons |
| Encoders | 1 multi-function rotary encoder for system parameter navigation and overall volume adjustment |
System Capacity
| Channels | 32 communication channels natively across two switchable operational layers |
| Scalability | Can be expanded by daisy-chaining up to 9 MCXEXT Extension Units, scaling the physical layout by 24 additional channels per extension |
Physical And Connections
| Power Supply | Power over Ethernet |
| Weight | 2.45 |
Audio And Connectivity
| Front Connections | 1x 3-pin XLR microphone connector for stalk/gooseneck mics, and 1x 4-pin male XLR headset connector |
| Rear Connections | 2x 10/100Mbps Neutrik RJ45 etherCON ports (internal switch), 1x D-Sub 9-pin GPIO, 1x 3-pin XLR Line In, and 1x 3-pin XLR Line Out |
| Monitoring | Integrated internal loudspeaker for headset-free monitoring |
