Cameras
Micro Studio Camera 4K G2
by Blackmagic

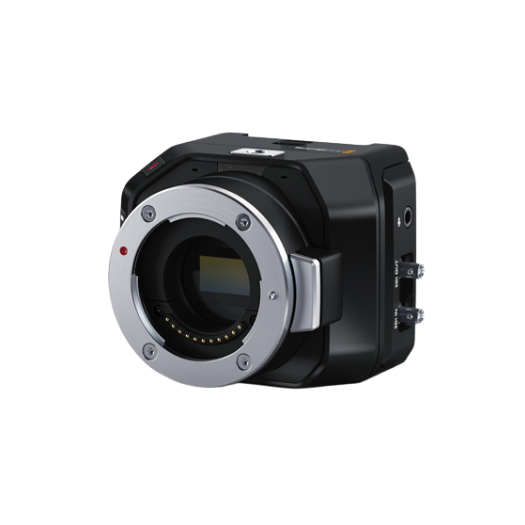

Blackmagic Micro Studio Camera 4K G2 is an amazing, broadcast quality live production camera in a tiny body.
Micro Studio Camera 4K G2
Name
Blackmagic
Manufacturer
0° to 40° C (32° to 104° F)
Operating Temperature
Auto focus available using compatible lenses.
Focus
General Information
| Name | Micro Studio Camera 4K G2 |
| Manufacturer | Blackmagic |
Environmental
| Operating Temperature | 0° to 40° C (32° to 104° F) |
Technical Specifications
| Focus | Auto focus available using compatible lenses. |
I/O & Connectivity
| Video Input | 1 x 12G‑SDI Micro BNC |
| Video Output | 1 x 12G‑SDI Micro BNC |
| SDI Rates | 3G, 6G, 12G |
Media
| Media | 1 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Camera Features
| Effective Sensor Size | 17.78mm x 10mm (Four Thirds) |
| Lens Mount | Active MFT Mount. |
| Lens Control | Iris, focus, zoom on supported lenses. |
| Dynamic Range | 13 Stops. |
| Shooting Resolutions | 3840 x 2160 (Ultra HD) up to 60 fps. |
| Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD. |
