LED Screen
Outdoor

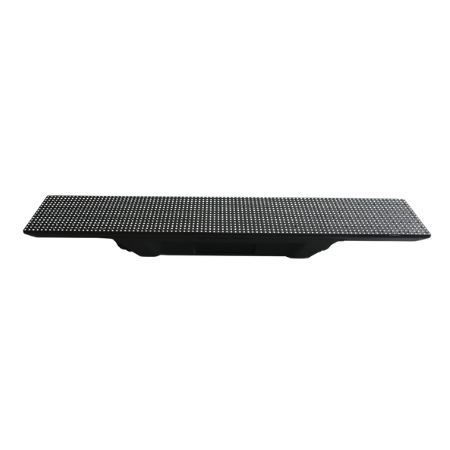

PB6
by FantaLED
Creative strip/block product
6.25
Pixel Pitch
96
Horizontal Resolution
16
Vertical Resolution
0
Transparency
Physical Dimensions
| Weight | 2.10kg |
| Height | 10.0cm |
| Width | 60.0cm |
Technical Specifications
| Pixel Pitch | 6.25 mm |
| Horizontal Resolution | 96 px |
| Vertical Resolution | 16 px |
| Transparency | 0 % |
| Brightness | 4000 NITS |
| IP Rating | IP54 |
| Power Consumption 100% (per tile) | 50 W |
| Earth Leakage per Tile | 0.2 mA |
| Earth Leakage per m² | 3.3 mA |
| Refresh Rate | 3840Hz Hz |
| Grey Scale Bit Depth | 14 bits |
| Processing Platform | Brompton |
| Data Connectors | Ethercon |
| Power Connectors | True1 |
| Indoor/Outdoor | Outdoor |
| Tiles/16A Circuit | 40 |
Key Features
| Tiles Per Case | 32 |
| Maximum Flown Height | - |
| Maximum Stacked Height | - |
