Media Server

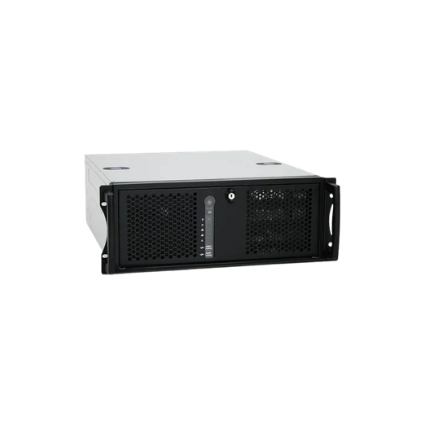

Resolume Arena v7
by Resolume
AMD Ryzen Threadripper PRO 7965WX (24 Cores / 48 Threads, up to 5.3 GHz) optimized for massive multi-layer video decompression
CPU
NVIDIA RTX 5000 Ada Generation (32GB GDDR6 ECC VRAM) dedicated entirely to the output canvas
GPU
128 GB DDR5 ECC Registered configured in multi-channel arrays for heavy content playback bandwidth
RAM
Dual-drive setup; OS runs on mirrored boot drives, while media relies on 4x 2TB NVMe M.2 SSDs in RAID 0.
Storage
Physical Dimensions
| Weight | 20.00kg |
| Height | 17.8cm |
| Width | 48.5cm |
| Depth | 60.0cm |
Technical Specifications
| CPU | AMD Ryzen Threadripper PRO 7965WX (24 Cores / 48 Threads, up to 5.3 GHz) optimized for massive multi-layer video decompression |
| GPU | NVIDIA RTX 5000 Ada Generation (32GB GDDR6 ECC VRAM) dedicated entirely to the output canvas |
| RAM | 128 GB DDR5 ECC Registered configured in multi-channel arrays for heavy content playback bandwidth |
| Storage | Dual-drive setup; OS runs on mirrored boot drives, while media relies on 4x 2TB NVMe M.2 SSDs in RAID 0. |
| Read Speed | Over 24,000 MB/s sequential read throughput to instantly swap uncompressed high-bitrate clips. |
| Operating System | Windows 11 Pro 64-bit |
| PCIe Generation | PCIe Gen 5.0 native support across all motherboard lanes. |
| Notchmark Score | 43,979 |
I/O & Connectivity
| Video Outputs | 4x DisplayPort 1.4a native ports directly out of the rendering GPU. |
| Max Output Resolution | Native 8K equivalent canvas (7680 × 4320 pixels) split seamlessly across four fully synchronized 4K outputs at 60 FPS. |
| Video Inputs | Native expansion via PCIe capture cards including 4x 12G-SDI (BNC) and 2x HDMI 2.0. |
| Max Input Resolution | 4K UHD (3840 × 2160) at 60 FPS per input stream. |
| High-Speed Network | 2x 10GbE |
| General Network | 1x 1GbE |
| Genlock | Fully supported via an integrated NVIDIA Quadro Sync II hardware card to prevent multi-projector or panel tearing. |
| GUI Output | DisplayPort 1.2 |
Key Features
| Form Factor | 4U Reinforced Professional Rackmount Chassis designed with shock-isolated framing for flight cases and touring mobile units. |
| Dimensions (W x H x D) | 485mm x 178mm x 600mm |
| Weight | 20 kg |
| Max Noise | 62 dB |
| Software Platform | Windows 11 |
| OmniCal Compatible | no |
| Redundancy/Failover | 1:1 main/backup |
