Camera Systems

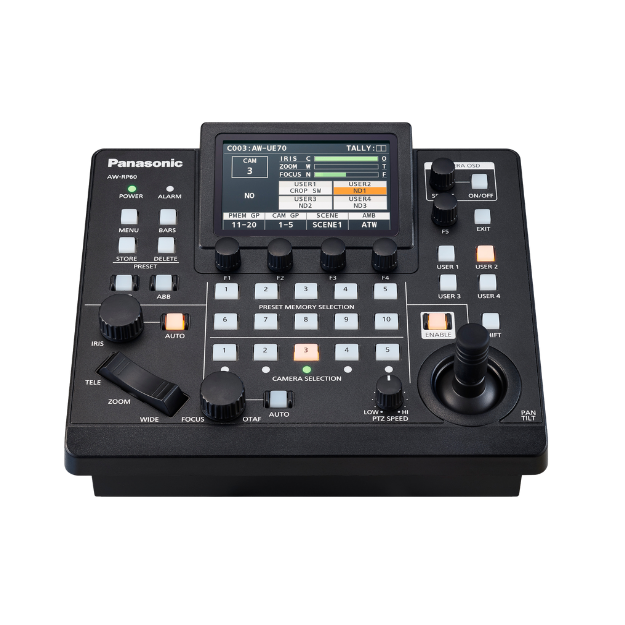

RP60
by Panasonic
RP60
Name
Panasonic
Manufacturer
1.5
Weight
92
Height
General Information
| Name | RP60 |
| Manufacturer | Panasonic |
Physical Specifications
| Weight | 1.5 kg |
| Height | 92 mm |
| Width | 20 mm |
| Depth | 177 mm |
Power
| Power Requirements | 12 V DC (10.8 V to 13.2 V) |
| Power over Ethernet | IEEE802.3af standard:42 V to 57 V DC |
| Current Composition | 0.9 A (XLR connector input), 0.3 A (PoE power supply) |
System Capabilities
| Display | 3.5-type liquid crystal (QHD 960 x 540) |
| Connectable Cameras | 200 (IP), 5 (RS422) |
| Remote Camera Selection | 5 (6 to 200 controlled from the LDC) |
| Camera Groups | 40 (5 units/group) |
| Memory Presets | 100 |
