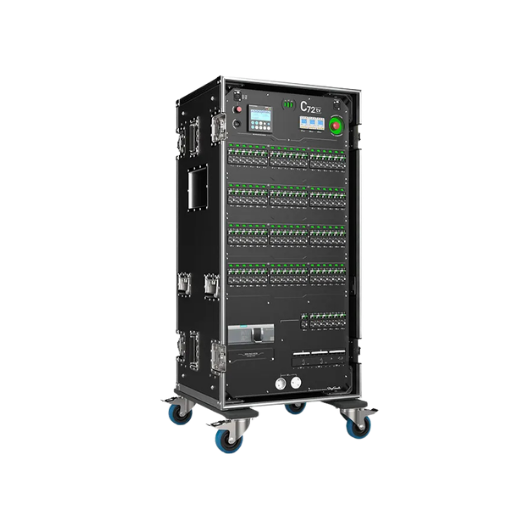

SmartPDU C72
by StageSmarts
Large-scale tour and TV master distribution up to 400A total throughput
Capacity
72 main channels, 16A each
Channel Ratings
Comprehensive real-time analysis of all incoming lines and individual output loads
Monitoring
CE, UKCA, and EN live-event safety standard approved
Compliance
Specifications
| Capacity | Large-scale tour and TV master distribution up to 400A total throughput |
| Channel Ratings | 72 main channels, 16A each |
| Monitoring | Comprehensive real-time analysis of all incoming lines and individual output loads |
| Compliance | CE, UKCA, and EN live-event safety standard approved |
| Enclosure | Complete touring system integrated within an internal shock-proof suspension frame |
Electrical
| Operating Voltage | 230V / 400V AC, 50/60 Hz |
| Input Types | Powerlock 400A 5-wire (TN-S) with main feed pass-through |
| Main Outputs | Quick-change modular multi-pin boxes |
| Aux 3-phase outputs | Up to 3 x adjustable 3-phase outlets |
| Aux 1-phase outputs | 6 to 7 individual single-phase outlets |
| Grounding | 5-wire TN-S system layout |
| Breaker Type | Thermal-stable, industrial-grade hydromagnetic RCBOs |
Hardware & Interface
| Local control | Front-panel multi-colour status LEDs per channel and system diagnostics |
| Service port | Built-in web server via RJ45 EtherCON network port |
| IP rating | IP20 |
Physical Specifications
| Weight | 150 kg |
