Signal Processing

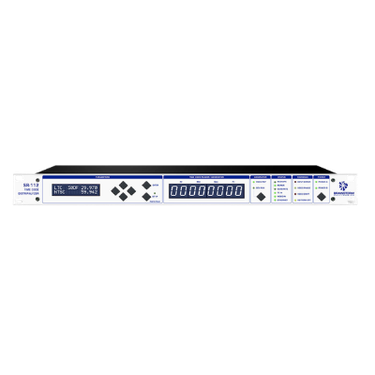

SR-112 Timecode Distripalyzer
by Brainstorm Electronics
NTSC, PAL
SD Video Standards
N/A
SDI Rates
1 x BNC Input
Genlock
No
HDCP Support
Video And Signal Standards
| SD Video Standards | NTSC, PAL |
| SDI Rates | N/A |
| Genlock | 1 x BNC Input |
| HDCP Support | No |
Inputs And Outputs
| Video Inputs | 1 x BNC Reference Input |
| Video Outputs | None |
| Physical Output Connectors | 1x DB-25 Female Connector - 2x XLR Male Ports - 2x 1/4" TRS Phone Jacks |
| Timecode Input | 1 x XLR Female Port |
Connectivity And Control
| Ethernet | 1 x RJ45 Port |
Power And Environmental
| Power Supply | Dual redundant 12V DC external power inputs |
| Power Usage | Less than 15 W typical consumption |
| Operating Temperature | 0°C to 50°C |
Physical Specifications
| Physical Installation | 1 RU |
| Weight | 2.27 kg |
| Width | 482.6 mm |
| Height | 44.5 mm |
| Depth | 206.4 mm |
