Cameras

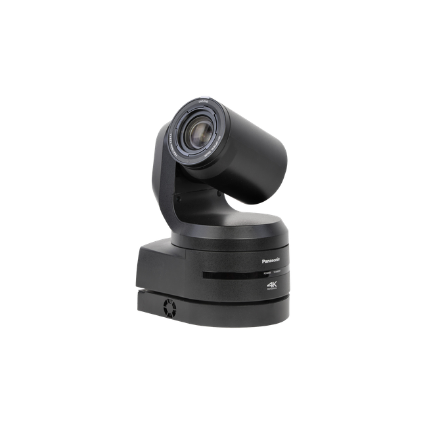

TOPAS 4K
by Ereca
TOPAS 4K
Name
Ereca
Manufacturer
6.05
Weight
310
Height
General Information
| Name | TOPAS 4K |
| Manufacturer | Ereca |
Physical Specifications
| Weight | 6.05 kg |
| Height | 310 mm |
| Width | 213 mm |
| Depth | 267 mm |
Power
| Power Requirements | 12V DC generated via the TOPAS dock. The entire system is fed via a hybrid SMPTE optical cable from the base receiver up to 800 metres away. |
| Current Consumption | The TOPAS dock draws 8 Watts continuously while routing up to a 50 Watt continuous power supply to the camera. The Panasonic camera itself draws roughly 4.0A to 5.0A over a 12V input. |
Environmental
| Operating Temperature | -20°C to +60°C |
Technical Specifications
| Imaging Sensors | 1-type (1-inch) 4K MOS large sensor. |
| Effective Pixels | Approximately 9.62 Megapixels. |
| Lens | Motorized optical 20x zoom lens, F2.8 to F4.5. Focal length ranges from f=8.8 mm to 176 mm (35 mm equivalent: 24.5 mm to 490 mm). |
| Optical Filter | Optical Low Pass Filter (OLPF) included natively on the AW-UE160 to eliminate moiré. |
| Focus | Auto Focus / Manual Focus switching. Minimum focusing distance is 10 cm (0.33 ft) at wide-angle, and 1 meter (3.3 ft) at maximum telephoto zoom. |
Video
| Output Format | Pass-through multi-format fiber transmission |
I/O & Connectivity
| Video Input | 1x 12G-SDI, 1x 3G-SDI, and 1x HD-SDI directly from the camera base into the TOPAS dock. |
| Video Output | 1x HD-SDI return path fed back through the fiber to the camera position for monitoring or teleprompting. |
| SDI Rates | Native broadcast outputs up to 12G-SDI, 3G-SDI, and HD-SDI. It fully supports SMPTE ST-2082 12G transmission standards. |
Camera Features
| Lens Control | Remote motorized control over Pan, Tilt, Zoom, Iris, Focus, and Gain via IP (Ethernet), RS-422, or serial command pipelines mapped transparently through the TOPAS fiber link |
| Dynamic Range | 10 dB optical dynamic range budget over 12G-SDI fiber transmission; 15 dB over 3G-SDI. |
| Shooting Resolutions | 3840 x 2160 (Ultra HD 4K) and 1920 x 1080 (Full HD). |
| Frame Rates | 59.94p, 50p, 29.97p, 25p, 24p, and 23.98p. The AW-UE160 also supports high-speed shooting up to 1080/119.88p and 100p. |
