Cameras

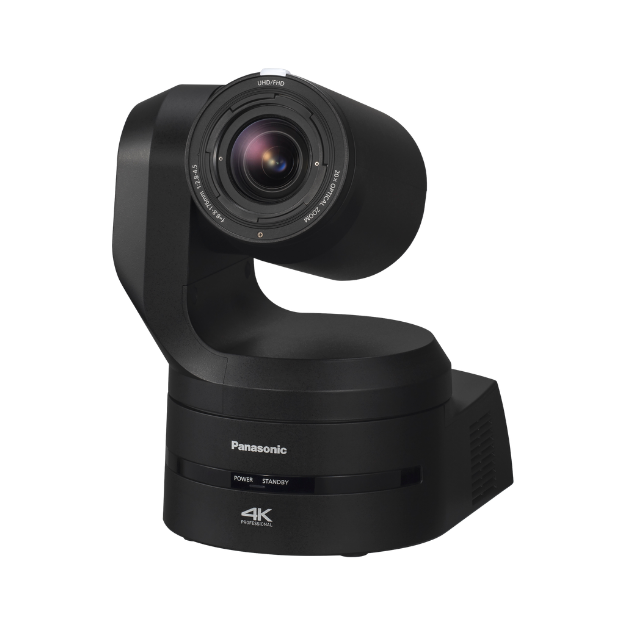

UE160K PTZ
by Panasonic
4K PTZ Camera for an era of enhanced creativity and the pursuit of visual expression.
UE160k
Name
Panasonic
Manufacturer
4.6
Weight
277
Height
General Information
| Name | UE160k |
| Manufacturer | Panasonic |
Physical Specifications
| Weight | 4.6 kg |
| Height | 277 mm |
| Width | 213 mm |
| Depth | 240 mm |
Power
| Power Requirements | 12VDC±10% (10.8V to 13.2V) |
| Current Consumption | 5.0A (XLR Input), 1.5A (PoE++ power supply) |
Technical Specifications
| Imaging Sensors | 1-type (1”) 4K MOS×1 (Effective size) |
| Effective Pixels | Approx.9,620,000 pixels |
| Lens | Motorized 20x optical zoom F2.8 to F4.5 f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches), 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches) |
Video
| Output Format | 4k, HD |
I/O & Connectivity
| Input Connector | G/L IN |
| Video Output | HDMI, 12G SDI OUT, 3G SDI OUT, SFP, USB |
