Cameras

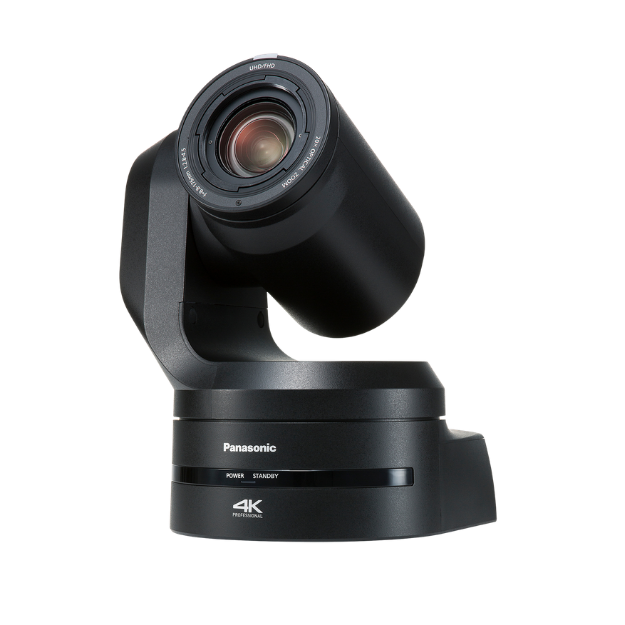

UE150K PTZ
by Panasonic
The Panasonic UE150 is a high-end professional PTZ camera that delivers 4K 50/60p video using a large 1-inch MOS sensor.
UE150K
Name
Panasonic
Manufacturer
4.2
Weight
267
Height
General Information
| Name | UE150K |
| Manufacturer | Panasonic |
Physical Specifications
| Weight | 4.2 kg |
| Height | 267 mm |
| Width | 213 mm |
| Depth | 219 mm |
Power
| Power Requirements | 12 V DC (10.8 V to 13.2 V) |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
Environmental
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
Technical Specifications
| Imaging Sensors | 1-type 4K MOS×1 |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
I/O & Connectivity
| Input Connector | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| Video Output | HDMI, 12G-SDI OUT, 3G-SDI OUT, MONI OUT |
