LED Screen
Outdoor

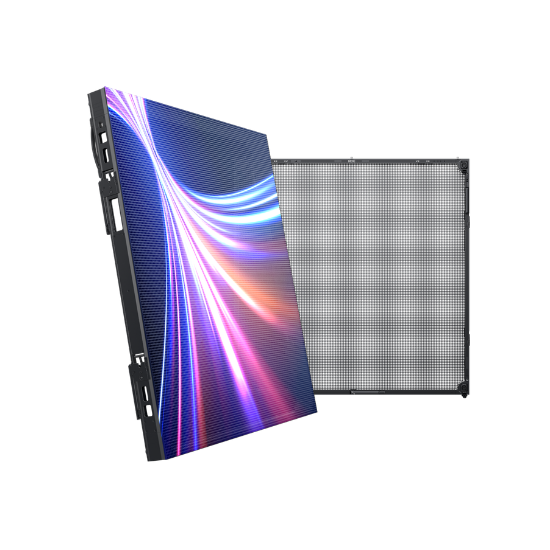

Vanish Air
by ROE
6.94
Pixel Pitch
11.8
Weight per Tile
144
Horizontal Resolution
144
Vertical Resolution
Physical Dimensions
| Height | 100.0cm |
| Width | 100.0cm |
| Depth | 7.9cm |
Technical Specifications
| Pixel Pitch | 6.94 mm |
| Weight per Tile | 11.8 kg |
| Horizontal Resolution | 144 px |
| Vertical Resolution | 144 px |
| Transparency | 92 % |
| Brightness | 4000 NITS |
| IP Rating | IP65 |
| Power Consumption 100% (per tile) | 650W |
| Refresh Rate | 7680Hz |
| Grey Scale Bit Depth | 16bit |
| Maximum Hanging | 20 tiles |
| Processing Platform | Brompton |
| Data Connectors | Neutrik etherCON |
| Power Connectors | Neutrik powerCON TRUE1 TOP |
| Indoor/Outdoor | Outdoor |
| Viewing Angle (H) | 160 ° |
| Viewing Angle (V) | 160 ° |
| Curving (Concave) | 5 |
| Curving (Convex) | 5 |
