Signal Processing

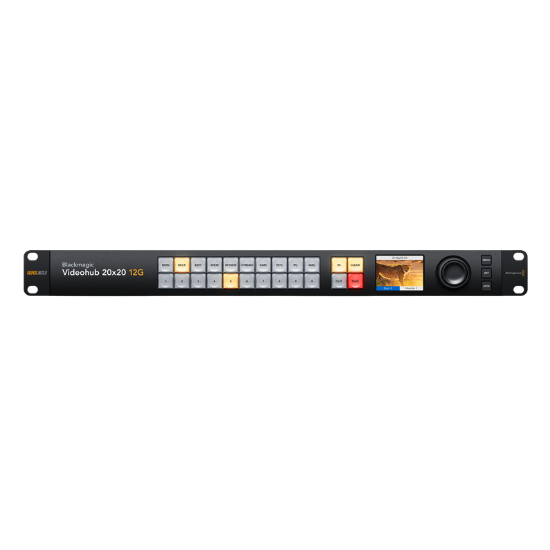

Videohub 20x20 12G
by Blackmagic
Blackmagic Videohub 20x20 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time.
Videohub 20x20 12G
Name
525i59.94 NTSC, 625i50 PAL
SD Video Standards
Blackmagic
Manufacturer
Blackmagic Videohub 20x20 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time.
Description
General Information
| Name | Videohub 20x20 12G |
| Manufacturer | Blackmagic |
| Description | Blackmagic Videohub 20x20 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. |
Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI Video Sampling | YUV 4:2:2 and RGB 4:4:4 |
| SDI Colour Precision | 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. |
| SDI Colour Space | REC 601, REC 709, REC 2020 |
Power
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required. |
| Power Usage | 27.5 W max. |
Physical Specifications
| Physical Installation | 1 rack unit height |
| Weight | 3.6 kg |
| Height | 44.2 mm |
| Width | 482 mm |
| Depth | 236.14 mm |
Environmental Specifications
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Environmental Temperature | -20° to 60° C (-4° to 140° F) |
| Environmental Humidity | 0% to 90% non-condensing |
Connections
| Video Inputs | 20 |
| Video Outputs | 20 |
| SDI Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G. |
