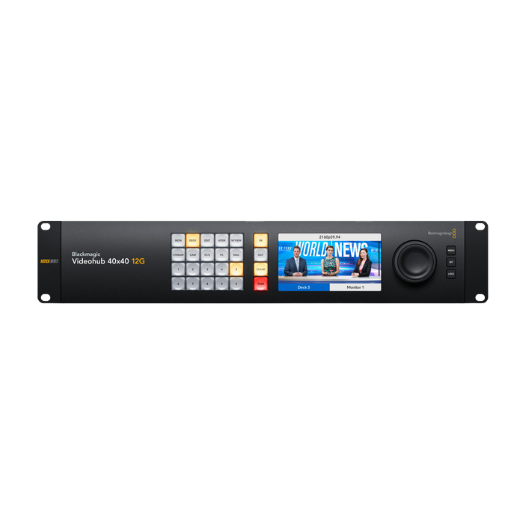

Videohub 40x40 12G
by Blackmagic
Blackmagic Videohub 40x40 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time.
Videohub 40x40 12G
Name
525i59.94 NTSC, 625i50 PAL
SD Video Standards
Blackmagic
Manufacturer
Television standard sample rate of 48kHz and 24-bit.
SDI Video Sampling
General Information
| Name | Videohub 40x40 12G |
| Manufacturer | Blackmagic |
Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| SDI Video Sampling | Television standard sample rate of 48kHz and 24-bit. |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI Colour Precision | 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. |
Power
| Power Supply | 2 x Internal 100 - 240V AC 50/60Hz. IEC power cables required. |
| Power Usage | 46.5 W max. |
Physical Specifications
| Physical Installation | 2 rack units height. |
| Weight | 5.6 kg |
| Height | 88.4 mm |
| Width | 482 mm |
| Depth | 238 mm |
Environmental Specifications
| Operating Temperature | 0° to 40° C (32° to 104° F) |
Connections
| SDI Video Inputs | 40 |
| SDI Video Outputs | 40 |
| SDI Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G. |
| Ethernet | Supports 10/100/1000 BASE‑T. |
