Distro

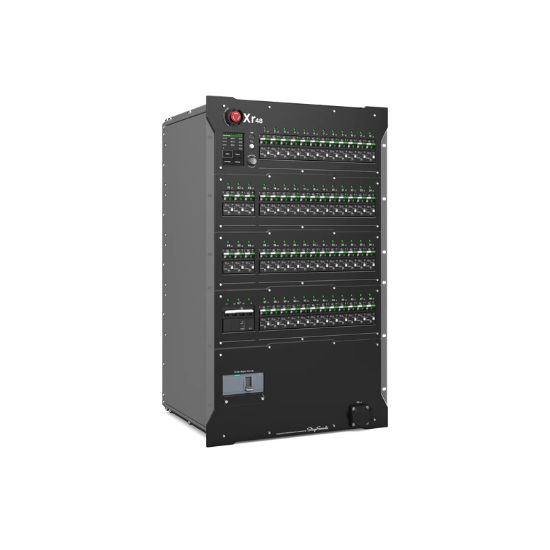

XR48
by StageSmarts
AI Mode conversation: StageSmarts xR48 specsYou said: StageSmarts xR48 specsStageSmarts xR48 specsThe Stagesmarts xR48 is a 48-channel, upgradable power distribution unit designed.
48 channels
Capacity
Configurable at 10A, 13A, or 16A per channel
Channel Ratings
Fast-acting over-voltage protection. - Loss-of-neutral protection. - Adjustable earth leakage protection and metering.
Electrical Protections
Per-channel load and leakage current monitoring
Monitoring
Specifications
| Capacity | 48 channels |
| Channel Ratings | Configurable at 10A, 13A, or 16A per channel |
| Electrical Protections | Fast-acting over-voltage protection. - Loss-of-neutral protection. - Adjustable earth leakage protection and metering. |
| Monitoring | Per-channel load and leakage current monitoring |
| Compliance | EN, VDE, CE, and UKCA compliant. |
| Enclosure | Rack mount (800mm / 18U) or shock-mounted into a heavy-duty touring case. |
Electrical
| Operating Voltage | 400V / 230V AC at 50Hz. |
| Input Types | CEE 125A (with a 125A switch disconnector) or Powerlock type (with a 250A adjustable MCCB). |
| Main Outputs | 16A capacity using multi-pin connectors like 19-pole Socapex, Harting, or Neutrik powerCON TRUE1. |
| Aux 3-phase outputs | Configurable capacities of 16A, 32A, 40A, or 63A using CEE or Wilco connectors. |
| Aux 1-phase outputs | 16A or 32A capacity variants. |
| Grounding | Harting GND or an M8 stud connector. |
| Breaker Type | VDE-approved 1P+N hydraulic-magnetic RCBOs (30mA Type A) unaffected by temperature fluctuations. |
Hardware & Interface
| Local control | Full-colour touchscreen UI with a rotary encoder wheel and physical return button. |
| Service port | USB-C port that allows full system setup and configuration without needing main grid power connected. |
| IP rating | IP20 rated enclosure |
Physical Specifications
| Rack Height | 18U |
| Weight | 65 kg |
| Height | 800 mm |
| Depth | 800 mm |
