LED Processing

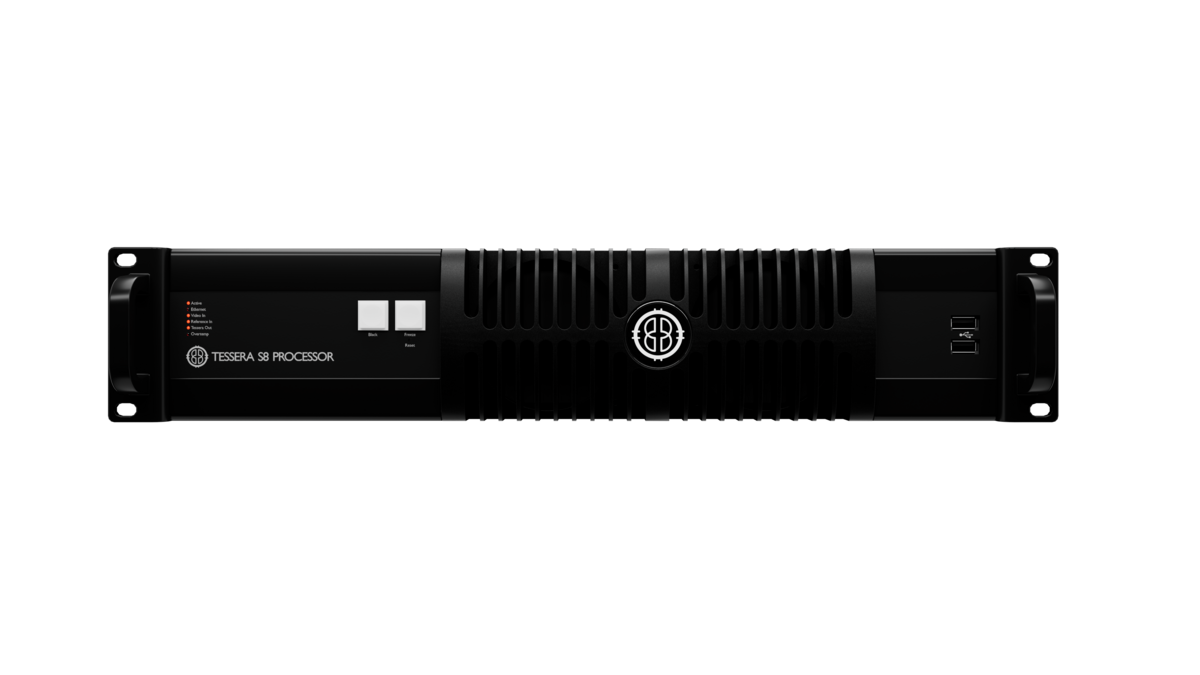

TESSERA S8
by Brompton
The leading choice for high-profile projects that have a cap on the needed output capacity, yet require all the capabilities and control of state-of-the-art LED processing.
4096 x 2160 pixels (4K DCI)
Input Resolution
1x HDMI 2.0 input + loop out 1x 12G SDI input + loop out
Video Input
8x 1 Gigabit Ethernet output ports (Neutrik etherCON)
Outputs
4.5 million pixels (up to 60Hz, capacity reduces at frame rates above 60Hz)
Pixel Capacity
Physical Dimensions
| Weight | 7.50kg |
| Height | 8.8cm |
| Width | 48.5cm |
| Depth | 41.0cm |
Video Processing
| Input Resolution | 4096 x 2160 pixels (4K DCI) |
| Video Input | 1x HDMI 2.0 input + loop out 1x 12G SDI input + loop out |
| Outputs | 8x 1 Gigabit Ethernet output ports (Neutrik etherCON) |
| Pixel Capacity | 4.5 million pixels (up to 60Hz, capacity reduces at frame rates above 60Hz) |
| Frame Rates | 23.98Hz to 251Hz (frame rates above 60Hz support reduced resolutions) |
| Bit Depth | 8-bit, 10-bit, and 12-bit |
| Genlock | 1x Genlock Input BNC, 1x Genlock Loop BNC |
Physical Specifications
| Weight | 7.5 kg |
| Height | 88.9 mm |
| Width | 482.6 mm |
| Depth | 406.4 mm |
| Rack Unit Size | 2U |
