LED Processing

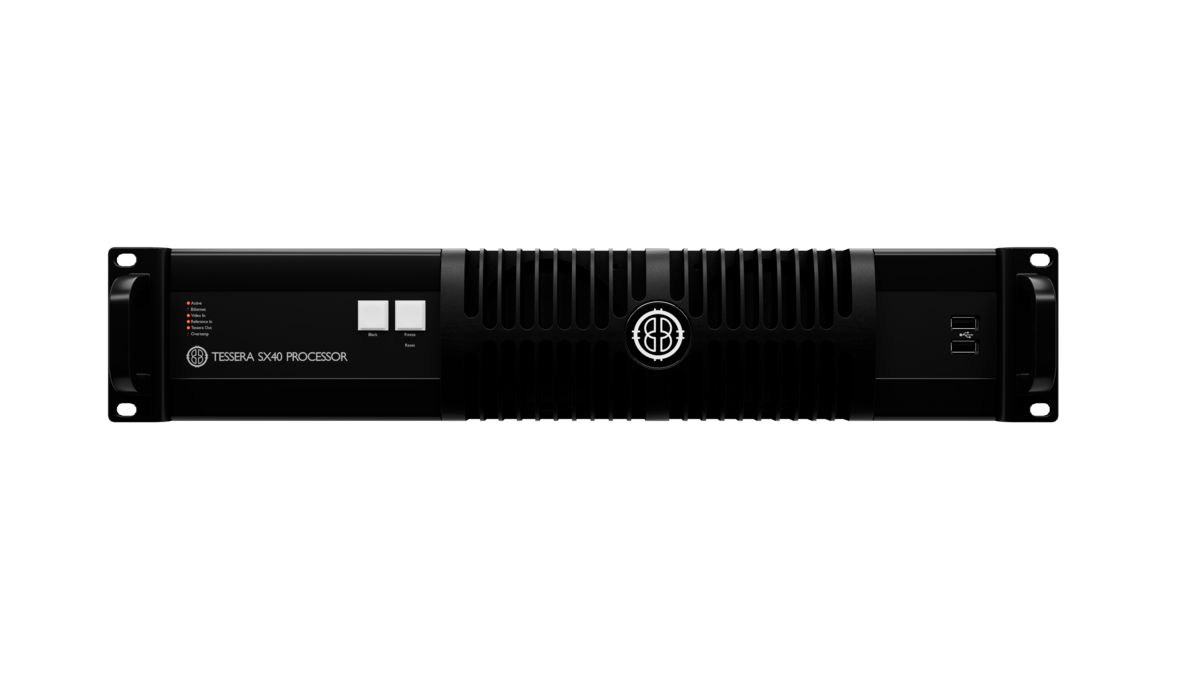

SX 40
by Brompton
The award-winning Tessera SX40. The processor of choice for the world’s biggest tours, pioneering virtual production projects and high-demand applications of every kind.
4096 x 2160 (4K DCI)
Input Resolution
1x HDMI 2.0 input + loop out 1x 12G SDI input + loop out
Video Input
4x 10GBASE-LR fibre output ports (Neutrik opticalCON Duo single mode), 4x 10GBASE-T copper output ports (Neutrik etherCON)
Outputs
9 million pixels (up to 60Hz, capacity reduces at frame rates above 60Hz)
Pixel Capacity
Physical Dimensions
| Weight | 7.50kg |
| Height | 8.8cm |
| Width | 48.5cm |
| Depth | 40.8cm |
Video Processing
| Input Resolution | 4096 x 2160 (4K DCI) |
| Video Input | 1x HDMI 2.0 input + loop out 1x 12G SDI input + loop out |
| Outputs | 4x 10GBASE-LR fibre output ports (Neutrik opticalCON Duo single mode), 4x 10GBASE-T copper output ports (Neutrik etherCON) |
| Pixel Capacity | 9 million pixels (up to 60Hz, capacity reduces at frame rates above 60Hz) |
| Frame Rates | 23.98Hz to 251Hz (frame rates above 60Hz support reduced resolutions) |
| Bit Depth | 8, 10, and 12-bit |
| Genlock | 1x Genlock Input BNC, 1x Genlock Loop BNC |
Physical Specifications
| Weight | 7.5 kg |
| Height | 88.9 mm |
| Width | 482.6 mm |
| Depth | 406.4 mm |
| Rack Unit Size | 2U |
