LED Processing

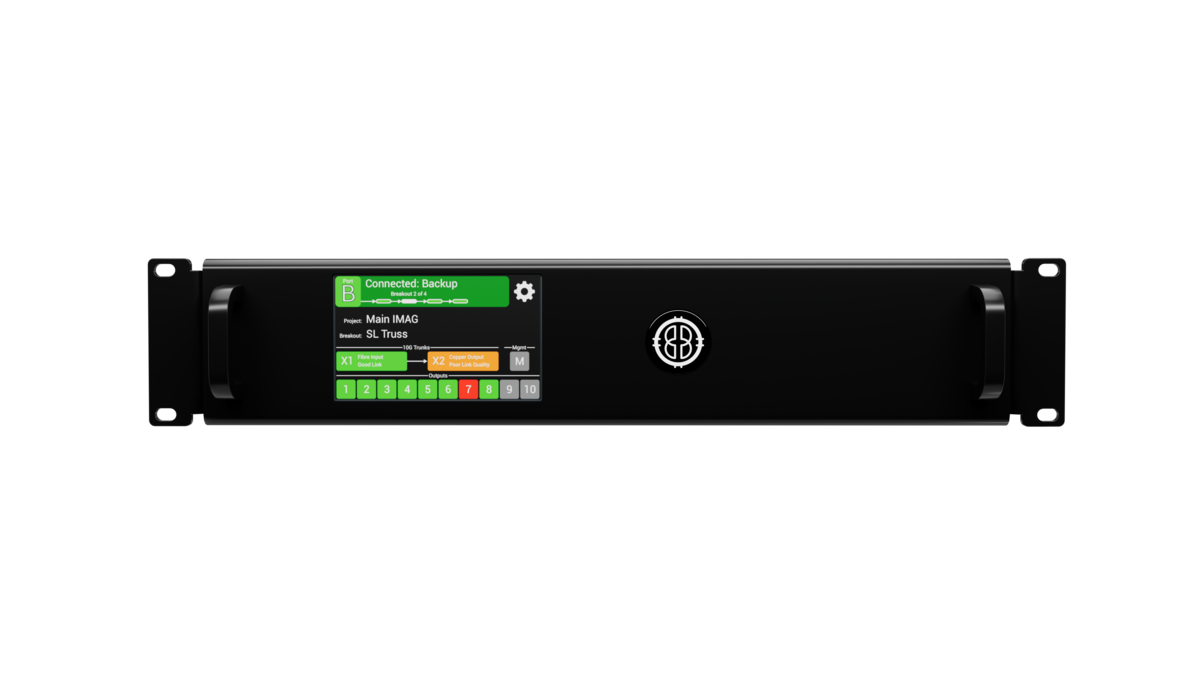

XD
by Brompton
Screen data distribution box for Sx40 procesors
From SX40 - 2x 10GBASE-LR fibre output ports (Neutrik opticalCON Duo, single mode), 2x 10GBASE-T copper output ports (Neutrik etherCON)
Video Input
10x 1 Gigabit Ethernet
Outputs
4.5 Mega pixels max
Pixel Capacity
23.98Hz to 251Hz
Frame Rates
Physical Dimensions
| Weight | 3.70kg |
| Height | 8.8cm |
| Width | 48.5cm |
| Depth | 21.0cm |
Video Processing
| Video Input | From SX40 - 2x 10GBASE-LR fibre output ports (Neutrik opticalCON Duo, single mode), 2x 10GBASE-T copper output ports (Neutrik etherCON) |
| Outputs | 10x 1 Gigabit Ethernet |
| Pixel Capacity | 4.5 Mega pixels max |
| Frame Rates | 23.98Hz to 251Hz |
| Bit Depth | 8, 10, and 12-bit |
Physical Specifications
| Weight | 3.7 kg |
| Height | 88.5 mm |
| Width | 482.6 mm |
| Depth | 209.6 mm |
| Rack Unit Size | 2U |
