LED Screen
Indoor

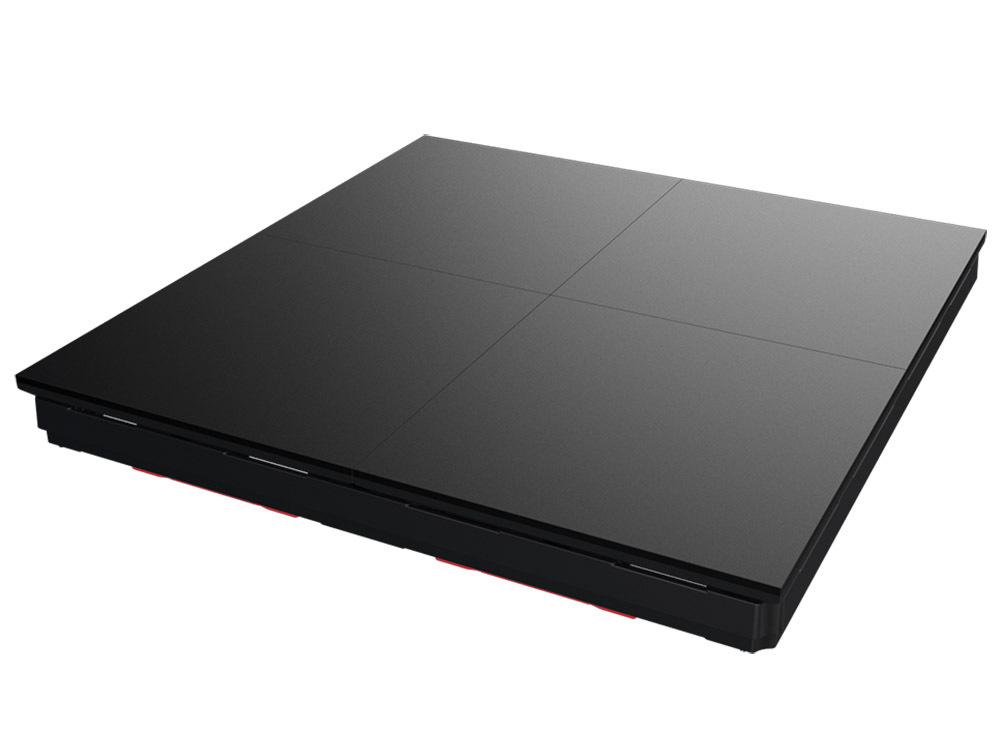

BM4
by ROE
Multi-purpose indoor LED floor
4.76
Pixel Pitch
128
Horizontal Resolution
128
Vertical Resolution
0
Transparency
Technical Specifications
| Pixel Pitch | 4.76 mm |
| Horizontal Resolution | 128 px |
| Vertical Resolution | 128 px |
| Transparency | 0 % |
| Brightness | 2000 NITS |
| IP Rating | IP54 |
| Power Consumption 100% (per tile) | 290 W |
| Refresh Rate | 3840Hz Hz |
| Grey Scale Bit Depth | 16 bits |
| Maximum Hanging | 0 tiles |
| Processing Platform | Brompton |
| Data Connectors | Ethercon |
| Power Connectors | True1 |
| Indoor/Outdoor | Indoor |
| Viewing Angle (H) | 140 ° |
| Viewing Angle (V) | 140 ° |
| Curving (Concave) | 0 ° |
| Curving (Convex) | 0 ° |
| Tiles/16A Circuit | 10 |
| Brompton Hydra Calibrated | yes |
Key Features
| Tiles Per Case | 8 |
| Maximum Flown Height | - |
| Maximum Stacked Height | - |
