LED Screen
Indoor

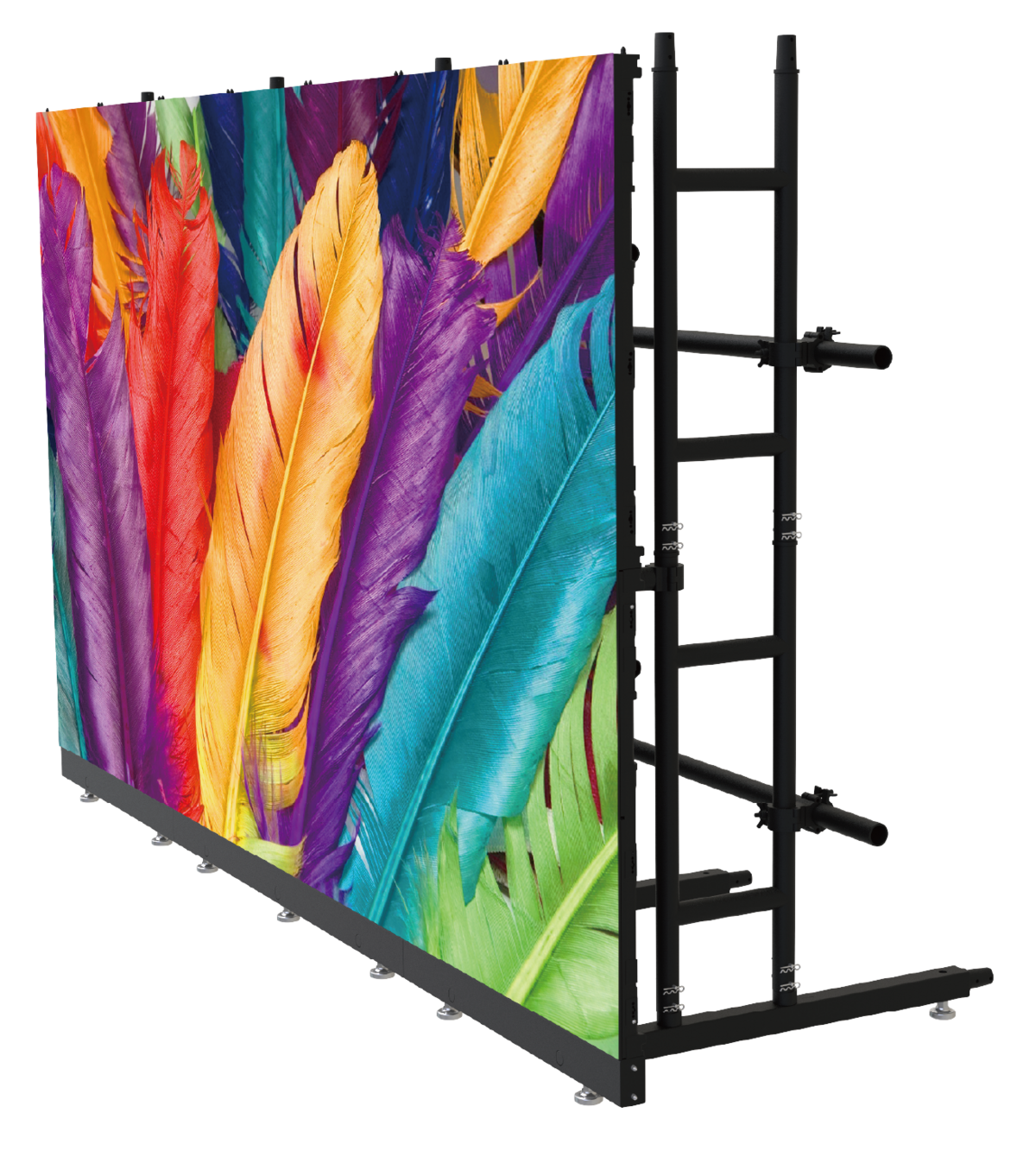

ER3
by InfiLED
3.91
Pixel Pitch
128
Horizontal Resolution
256
Vertical Resolution
0
Transparency
Physical Dimensions
| Weight | 12.50kg |
| Height | 100.0cm |
| Width | 50.0cm |
| Depth | 6.8cm |
Technical Specifications
| Pixel Pitch | 3.91 mm |
| Horizontal Resolution | 128 px |
| Vertical Resolution | 256 px |
| Transparency | 0 % |
| Brightness | 2000 NITS |
| IP Rating | IP30 |
| Power Consumption 100% (per tile) | 300 W |
| Refresh Rate | 3840Hz Hz |
| Processing Platform | Brompton |
| Data Connectors | Ethercon |
| Power Connectors | True1 |
| Indoor/Outdoor | Indoor |
| Viewing Angle (H) | 160 ° |
| Viewing Angle (V) | 155 ° |
| Curving (Concave) | 0 ° |
| Curving (Convex) | 0 ° |
| Tiles/16A Circuit | 10 |
| Brompton Hydra Calibrated | yes |
Key Features
| Tiles Per Case | 6 |
| Maximum Flown Height | 10m |
| Maximum Stacked Height | 6m |
