LED Screen
Outdoor

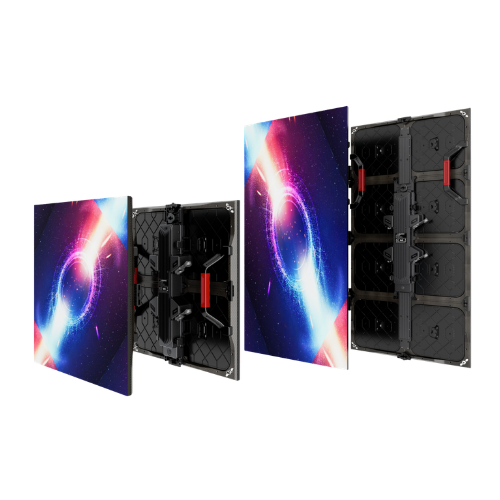

CLO3
by Leyard
High resolution outdoor screen
3.91
Pixel Pitch
128
Horizontal Resolution
256
Vertical Resolution
0
Transparency
Physical Dimensions
| Weight | 8.00kg |
| Height | 100.0cm |
| Width | 50.0cm |
| Depth | 7.1cm |
Technical Specifications
| Pixel Pitch | 3.91 mm |
| Horizontal Resolution | 128 px |
| Vertical Resolution | 256 px |
| Transparency | 0 % |
| Brightness | 5000 NITS |
| IP Rating | 65 |
| Contrast Ratio | 4000:1 |
| Power Consumption 100% (per tile) | 300 W |
| Refresh Rate | 3840 Hz |
| Grey Scale Bit Depth | 16 bits |
| Maximum Hanging | 20 tiles |
| Processing Platform | Brompton |
| Data Connectors | Ethercon |
| Power Connectors | True1 |
| Indoor/Outdoor | Outdoor |
| Viewing Angle (H) | 140 ° |
| Viewing Angle (V) | 140 ° |
| Curving (Concave) | 10 ° |
| Curving (Convex) | 10 ° |
| Brompton Hydra Calibration | yes |
Key Features
| Tiles Per Case | 8 |
| Maximum Flown Height | 12m |
| Maximum Stacked Height | 6m |
| Maximum Stacking (Dolly) | 2 |
