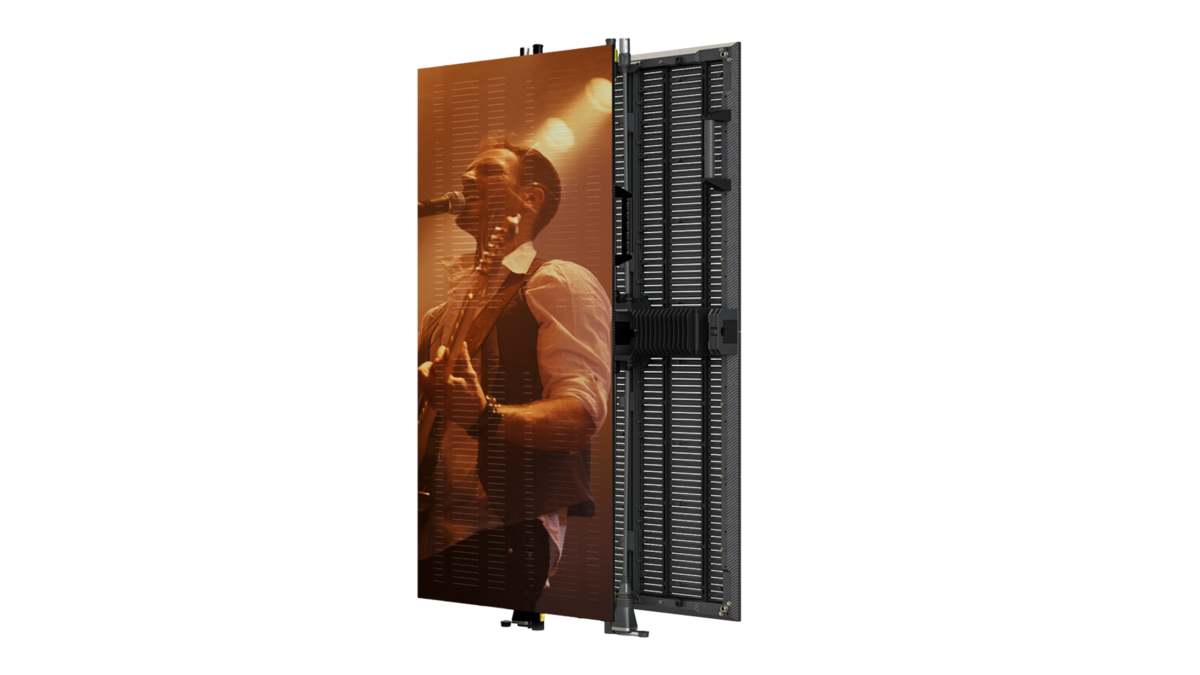

CLM5
by Leyard
Light outdoor modular screen
Technical Specifications
| Pixel Pitch | 5.95 mm |
| Horizontal Resolution | 84 px |
| Vertical Resolution | 168 px |
| Transparency | 0 % |
| Brightness | 5000 NITS |
| IP Rating | 65 |
| Contrast Ratio | 2000 |
| Power Consumption 100% (per tile) | 300 W |
| Refresh Rate | 3840 Hz |
| Grey Scale Bit Depth | 16 bits |
| Maximum Hanging | 20 tiles |
| Processing Platform | Brompton |
| Data Connectors | Ethercon |
| Power Connectors | True1 |
| Indoor/Outdoor | Outdoor |
| Viewing Angle (H) | 140 ° |
| Viewing Angle (V) | 140 ° |
| Curving (Concave) | 10 ° |
| Curving (Convex) | 10 ° |
| Tiles/16A Circuit | 8 |
| Brompton Hydra Calibration | yes |
Key Features
| Tiles Per Case | 8 |
| Maximum Flown Height | 20m |
| Maximum Stacked Height | - |
